Design Radiology
Integrations.
Ship with Confidence.

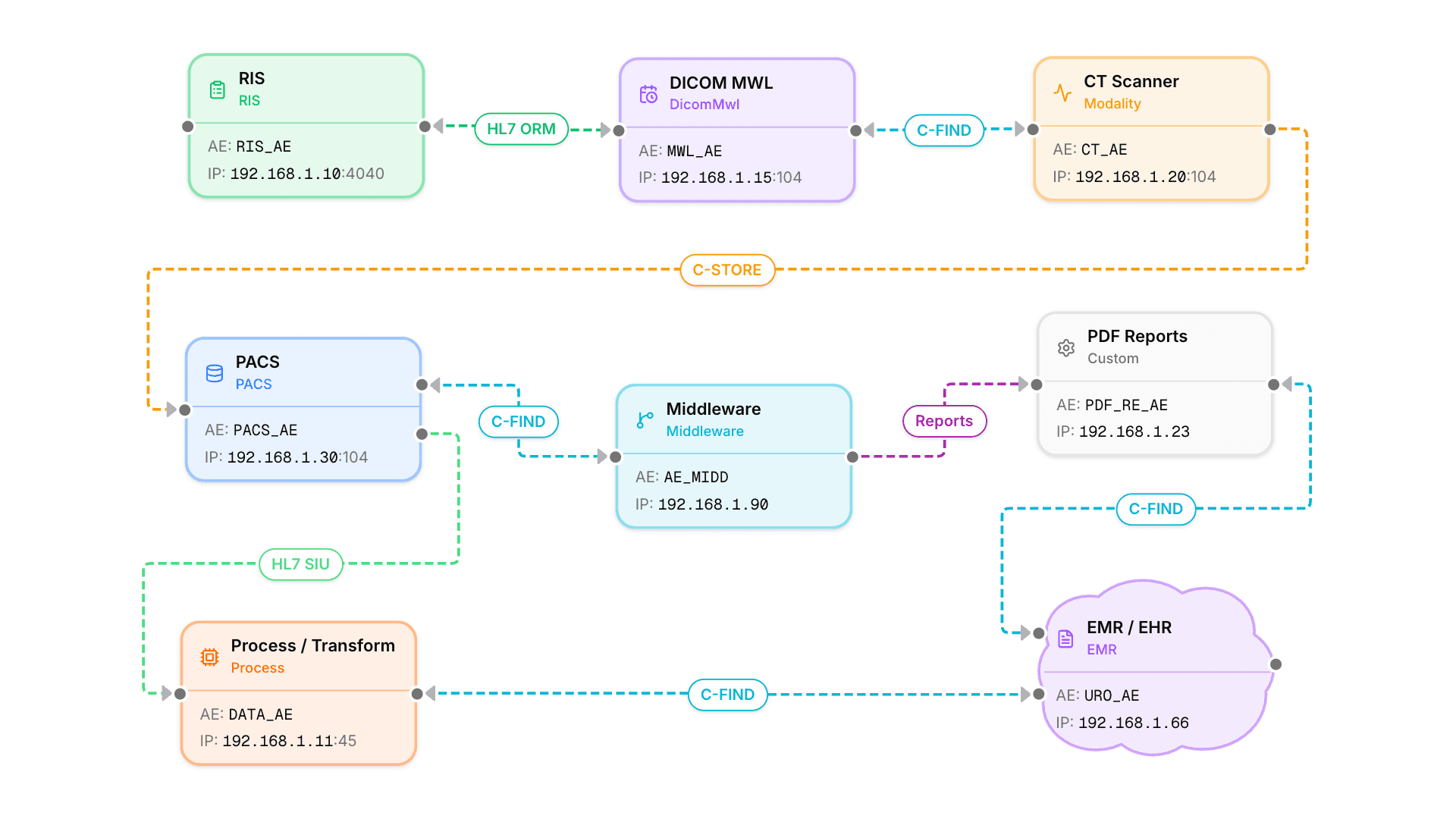

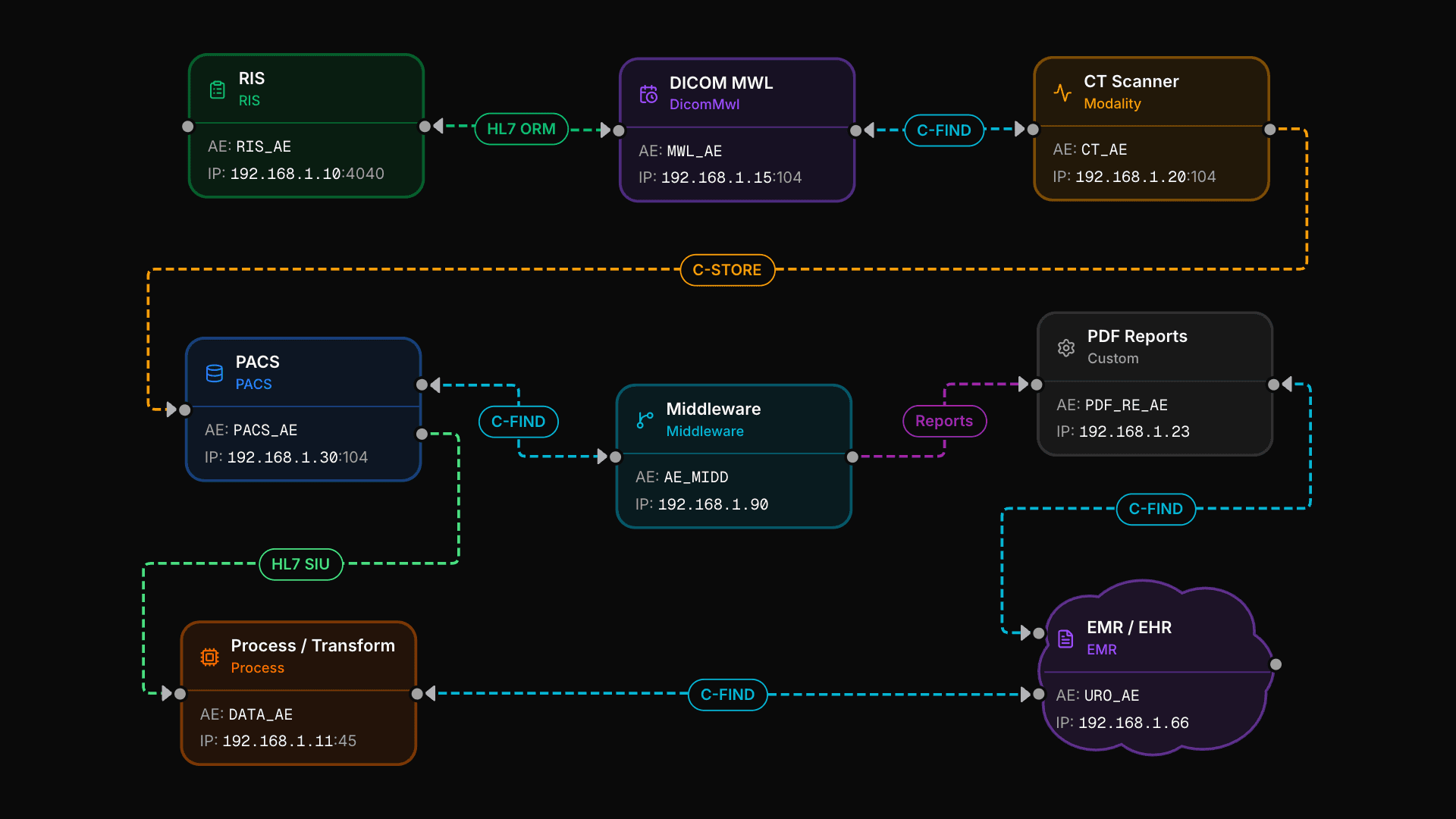

Visually model DICOM, HL7, and FHIR workflows between PACS, RIS, modalities, and EMR systems. Simulate interactions, generate artifacts, and present ROI reports — no code required.
MSH|^~\&|EPIC_EHR|EPIC|SECTRA_RIS|SECTRA|20260402143000||ORM^O01|MSG-001|P|2.5 PID|1||MRN-12345^^^EPIC^MR||DOE^JOHN^A||19800101|M ORC|NW|ORD-20260402001|||SC||||20260402143000 OBR|1|ORD-001||71250^CT CHEST W/CONTRAST^CPT|||20260402143000
MSH|^~\&|SECTRA_RIS|SECTRA|EPIC_EHR|EPIC|20260402143001||ACK^O01|ACK-001|P|2.5 MSA|AA|MSG-001|Order accepted successfully Order Status: SC (Scheduled) Scheduled Time: 20260402 14:30 Modality: CT Procedure: CT CHEST W/CONTRAST
Artifact generation
From diagram to deployment artifacts.
Stop manually configuring channels. Once your workflow is designed, Radinode generates production-ready integration artifacts — so your team moves from design to deployment in minutes, not days.
- Mirth Connect channel XML — ready to import
- BridgeLink channel configs & API definitions
- HL7 v2 sample messages per connection type
- FHIR R4 resource bundles
- Canonical JSON for custom tooling
Select the artifact formats to generate from your workflow diagram.
Integration planning
From kickoff charter to living project tracker.
Your integration plan doesn't end at kickoff. Radinode keeps it alive for the duration of the project — task statuses, phase progress bars, a blocker log, and an activity feed that shows every update in real time.
- 7 standard healthcare phases — pre-populated, drag to reorder
- Live task status tracking — flip tasks to In Progress, Blocked, or Complete with one click
- Blocker & issue log — track issues with severity and owner, linked to specific phases
- Export a PDF charter for kickoff, or share a live client status link — always up to date
AI workflow generator
Describe it. Watch AI draw the diagram.
Skip the blank canvas. Describe your integration in plain English — "Epic sends HL7 ORM to Mirth, which routes to three modalities via C-STORE" — and Radinode’s AI lays out every system, group, and connection in seconds.
- Describe any integration in plain English — AI builds the full canvas for you
- Systems are mapped to the right DICOM, HL7 v2, and FHIR connections automatically
- Add to your existing diagram or replace the canvas — you stay in control
- Start from example prompts or your own — nodes, groups, and edges in seconds
Epic EMR sends HL7 ADT and ORM to Mirth Connect. Mirth forwards orders to three modalities via HL7 ORM, and each pushes images to our PACS via C-STORE.
Client visibility
Stop emailing PDFs. Share a live status link.
Clients ask "where are we?" and consultants email a PDF that's outdated the moment it's sent. Radinode generates a unique, bookmarkable status link your client can check any time — always showing the latest plan progress with no login required.
- One click generates a unique shareable link — no login required for your client
- Clients see real-time phase progress bars, task statuses, and health indicators
- Toggle whether issues and the activity feed are visible to your client
- Revoke the link at any time — no more chasing down outdated emailed PDFs
Live tech guide
Give your engineers one live source of truth.
Stop handing engineers a PDF that’s stale by lunch. Radinode turns your workflow into a live technical implementation guide — every system’s IP, port, and AE title, full connection specs, firewall and VPN rules, and a phase-by-phase checklist. As the team checks off steps, progress syncs to everyone instantly, no refresh and no login.
- Complete connection specs — IP addresses, ports, AE titles, protocols, firewall & VPN rules
- Phase-by-phase implementation checklist — pre-flight, configuration, connectivity, go-live
- Engineers check off steps and add notes — synced live to everyone, no page refresh
- Share a link with your logo and brand color — no account required to open it
Proposal generator
Write your next SOW in minutes, not hours.
Your workflow already has every system and interface. Radinode turns that into a professional Scope of Work — with auto-calculated pricing, phase timelines, and a branded PDF — ready to send to a client the same day you design the integration.
- Auto-populate systems and interfaces directly from your workflow diagram
- Import phases from your integration plan or start from a 7-phase template
- Enter your hourly rate and complexity estimates — totals calculate automatically
- Export a branded PDF with cover page, scope table, pricing, and sign-off
Discovery & requirements
Gather requirements before you draw a single node.
Every integration starts with questions. Build reusable questionnaires, send them to your client through a secure link, and collect structured answers — so you walk into design with the EMR, engine, and protocol details already in hand.
- Build reusable question sets with 8 field types — choice, rating, yes/no, and more
- Assign to any client and collect answers through a secure link — no login required
- Track completion at a glance and review every response in one place
- Export a clean PDF of the answers for your project record
Everything you need
Built for radiology IT professionals
From first diagram to signed-off integration — Radinode covers every step of the design, simulation, and documentation workflow.
Visual Workflow Builder
Drag PACS, RIS, Modality, EMR, and integration engines onto a canvas and connect them in minutes — no Visio or draw.io required.
AI Workflow Generator
Describe your integration in plain English and let AI lay out every system, group, and connection on the canvas — then refine by hand.
Healthcare Protocols
Model real integrations with DICOM (MWL, C-STORE, C-FIND), HL7 v2 (ORM, ADT, ORU, SIU), and FHIR R4 — all built-in.
Interactive Simulation
Click any connection to see a simulated request/response — from a Modality Worklist query to a C-STORE image transfer.
Reusable Templates
Start from pre-built radiology workflows or save your own diagrams as templates for proposals, demos, and training.
Artifact Export
Generate Mirth Connect channels, BridgeLink configs, HL7 message templates, and FHIR R4 resources directly from your diagram.
ROI Calculator
Build polished before/after ROI reports with time savings, error reduction metrics, and executive summaries — PDF-ready.
Client Management
Organize workflows, templates, and ROI reports per client. Keep every integration design linked to the right account.
Client Questionnaires
Build reusable discovery questionnaires, send them to clients via a secure link, collect structured answers, and export them to PDF.
Custom Protocols
Create protocols with custom names, categories, colors, and sample payloads — beyond the built-in DICOM/HL7/FHIR set.
Integration Plans
Generate a professional PDF project charter from your workflow — phases, Gantt timeline, partner assignments, and a sign-off page, ready for kickoff.
Live Execution Tracker
Track task progress in real time — flip statuses, log blockers, view an activity feed, and monitor overall plan health from one screen.
Client-Shareable Portal
Generate a live, public status link for your client. They see real-time phase progress and health indicators — no login, no outdated PDFs.
Live Tech Guide
Hand engineers a live implementation guide — full connection specs, network requirements, and a phase checklist they tick off as they go, synced in real time.
SOW & Proposal Generator
Turn your workflow into a signed-off Scope of Work in minutes — auto-populated scope, effort estimates, pricing calculator, and PDF export.
Who it's for
Built for every role in the room
Whether you're selling, building, or documenting — Radinode fits your workflow, not the other way around.
Sales Engineers
Close deals with live, interactive demos
- Build integration proposals in minutes, not days
- Show real DICOM and HL7 workflows for your product
- Impress clients with simulated payload exchanges
Radiology IT Professionals
Design and validate before you build
- Map multi-system architectures visually
- Catch integration errors before they reach production
- Document AE titles, IP addresses, and ports per system
Solutions Architects
From diagram to deployment in one click
- Export Mirth Connect channels from any workflow
- Generate HL7 and FHIR artifacts automatically
- Reuse templates across similar integrations
Training & Education Teams
Make complex protocols understandable
- Visual diagrams anyone can follow and present
- Live payload simulations for hands-on learning
- Onboard new staff on DICOM, HL7, and FHIR
Simple workflow
From blank canvas to complete integration
Four steps is all it takes to go from nothing to a fully documented, simulated, and deployment-ready integration architecture.
Add your systems
Drag PACS, RIS, Modality, EMR, and middleware nodes onto the canvas. Configure each with AE Titles, IP addresses, and ports.
Connect with protocols
Wire systems using DICOM, HL7, or FHIR connections. Choose from 9+ built-in protocols or create your own custom ones.
Simulate interactions
Click any connection to preview live payloads — HL7 ORM messages, DICOM C-STORE transactions, and FHIR REST calls.
Export & deploy
Generate Mirth Connect channels, BridgeLink configs, HL7 templates, and FHIR resources — or export a full PDF integration plan and ROI report for stakeholders.
Standards support
The three pillars of radiology interoperability
Radinode ships with first-class support for every major healthcare integration standard used in radiology today.
Medical Imaging Standard
The universal language for storing, transmitting, and managing medical images across all imaging modalities and PACS systems.
- Modality Worklist (MWL)
- C-STORE
- C-FIND
- C-MOVE
- C-ECHO
Healthcare Messaging
Event-driven messaging for clinical workflows — from patient admission through order placement to results delivery.
- ORM — Orders
- ADT — Admissions
- ORU — Results
- SIU — Scheduling
Modern Healthcare API
RESTful API standard powering the next generation of interoperability, patient data access, and healthcare application integration.
- FHIR REST
- ImagingStudy & ServiceRequest
- Patient & Observation
- JSON / XML
Ready to simplify your integrations?
Join radiology IT teams who use Radinode to design, simulate, and deploy integration architectures — without writing a single line of code.
No credit card required · Free plan available
